Signal Processing

Dolby CP850

Whether you're ready to equip your cinema for an immersive Dolby Atmos audio experience now or prefer a flexible processor that you can upgrade in the future to deliver a full Dolby Atmos experience, we have a Dolby CP850 processor that's ideal for your needs.

Dolby Atmos represents the future of cinema audio, but we recognize that equipping a cinema for a fully immersive Dolby Atmos experience may not be practical for every situation today. For that reason, we now offer the Dolby Atmos Cinema Processor CP850 Base as well as the Dolby Atmos Cinema Processor CP850.

The Dolby Atmos Cinema Processor CP850 Base will play back traditional Dolby Surround 7.1 and 5.1 formats, as well as render select Dolby Atmos titles to a Dolby Surround 7.1 configuration. It includes the same advanced equalization and other audio features as the Dolby Atmos Cinema Processor CP850, so you can ensure that your cinema is ready for the future while adding a number of sound improvements now. (The CP850 Base does not require Dolby Commissioning Service. Dolby Atmos marketing support is exclusive to theatres with the full Dolby Atmos Cinema Processor CP850.) As with the full Dolby Atmos Cinema Processor CP850, the CP850 Base includes these features:

- Individual amplification and equalization of the surround speakers
- Support for bass management of the subwoofers
- Internal crossovers to improve your cinema's sound

For detailed specs and more information on Dolby Atmos please visit Dolby Atmos Cinema

Dolby CP750

The Dolby CP750 processor is specifically designed for Digital Cinema and provides decoding of Dolby 5.1 and 7.1 soundtracks.

The CP750 processor integrates seamlessly to Dolby Show Manager software for simple drag and drop automation commands. The unit also supports ASCII commands from 3rd party hardware so it can be easily interfaces to a wide variety of equipment.

The Dolby CP750 is ready for the network operations center (NOC) and can be monitored and controlled anywhere on the network for status and function. Hearing-impaired (HI) and auxiliary analog outputs complement the CP750's main eight-channel audio output.

Features
- Eight-Channel Digital Input (4 × AES/EBU) for Digital Cinema Server
- Includes support for Dolby Surround 7.1
- Provides access to hearing-impaired (HI) and visually impaired-narrative (VI-N) tracks when provided on 7/8
- Two Digital Pair Inputs (1 × AES/EBU each).Connects alternative content sources
- Toslink Digital Input. Connects alternative content sources that output optical digital audio
- Eight-Channel Analog Input. Connects an existing film sound processor for hybrid install.

For detailed specs visit Dolby Cinema

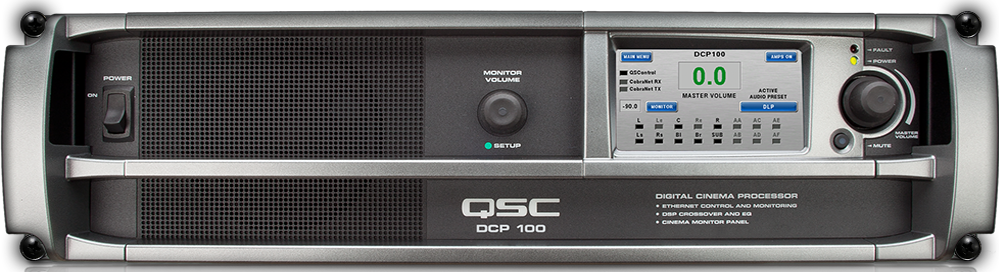

QSC DCP Series

The QSC DCP line of sound processors offer a cost effective solution for new installations and upgrades. The unit offers a vast array of features, most notably the easy connectivity to QSC amplfiers.

When combined with the use of QSC amplifiers, the DCN becomes the heartbeat of your sound system and is able to monitor channel faults and report abnormalities directly to the NOC or maintenance engineer via SNMP. Other key feature include built-in crossovers, monitor speaker with channel isolation, SD memory card back-up of system settings and control via the QSC DCP connect app.

The 3 models of the DCP (DCP100, 200, 300) allow you to specify the installtion on a neccessity basis which saves the exhibitor money. The DCP100 is ideal for small Bi-amp/passive systems and the DCP200/300 are better suited for large auditoriums with additional/more complex channel arrangements and power requirements.

QSC DCP Featues
- Network control and monitoring via SNMP
- Serial automation control via RS-232
- Analog Inputs for film processors, non-sync and Mic/line
- Master volume and full 1/3 octave graphic EQ on all channels
- Booth monitor with touch screen control for easy operation
- Digital loudspeaker crossovers
- Compatible with all existing DCA amplifiers
- Dual power supplies with load sharing for seamless operation in the event of failure
- SD memory card for quick unit swap - restores all settings
- Multiple bypass modes routes audio around failed components to insure that the show will go on
- DCP Manager and DCPNet PC-based application for set-up, control and monitoring
- DCP Connect mobile app for iPhone and Android provide control and monitoring capabilities via smart phone
- DSP presets for DCS speakers for great "out of box" performance and reduced set-up time
- Easily integrates with existing film processors for dual film/digital projection systems
- Continued development of software and firmware will add new capabilities to the existing hardware with easy firmware updates

For more detailed specifications and model details visit QSC Audio
